Meet ANYmal, your new inspector

Extreme mobility

ANYmal robot stairs climbing

ANYmal’s legs provide unparalleled mobility when moving up and down stairs, climbing over obstacles, steps, and gaps, and crawling into tight spaces. It delivers reliable performance in harsh indoor and outdoor environments and through rain, splash water, wind, snow, and dust.

ANYmal omni directional icon
Omni-directional

ANYmal stairs icon
Stairs

[45°]

ANYmal step icon
Step

[35 cm]

ANYmal gap icon
Gap

[30 cm]

ANYmal slope icon
Slope

[30°]

ANYmal overhanging icon
Suspended

[60 cm]

  • ANYmal is fully protected against water and dust (IP67) and able to operate in humid and dusty conditions. In case of exposure to hazardous substances, rinse your ANYmal with water to release it from contamination.

  • Built for tough jobs, we designed ANYmal and its payload with impact protection for long-term operation.

  • Programmed for dexterity, ANYmal is able to get back on its feet should it lose balance.

  • ANYmal’s perception system operates in all light conditions including bright sunlight and full darkness.

Full autonomy

ANYmal autonomously navigates complex multi-story environments. Once guided through the environment, the robot remembers every detail and finds the quickest route to perform its mission. During operation, the robot’s system safely avoids obstacles and reliably moves over rough terrain.

Show & go

Teach ANYmal once where to go and what to do for repetitive inspection routines.

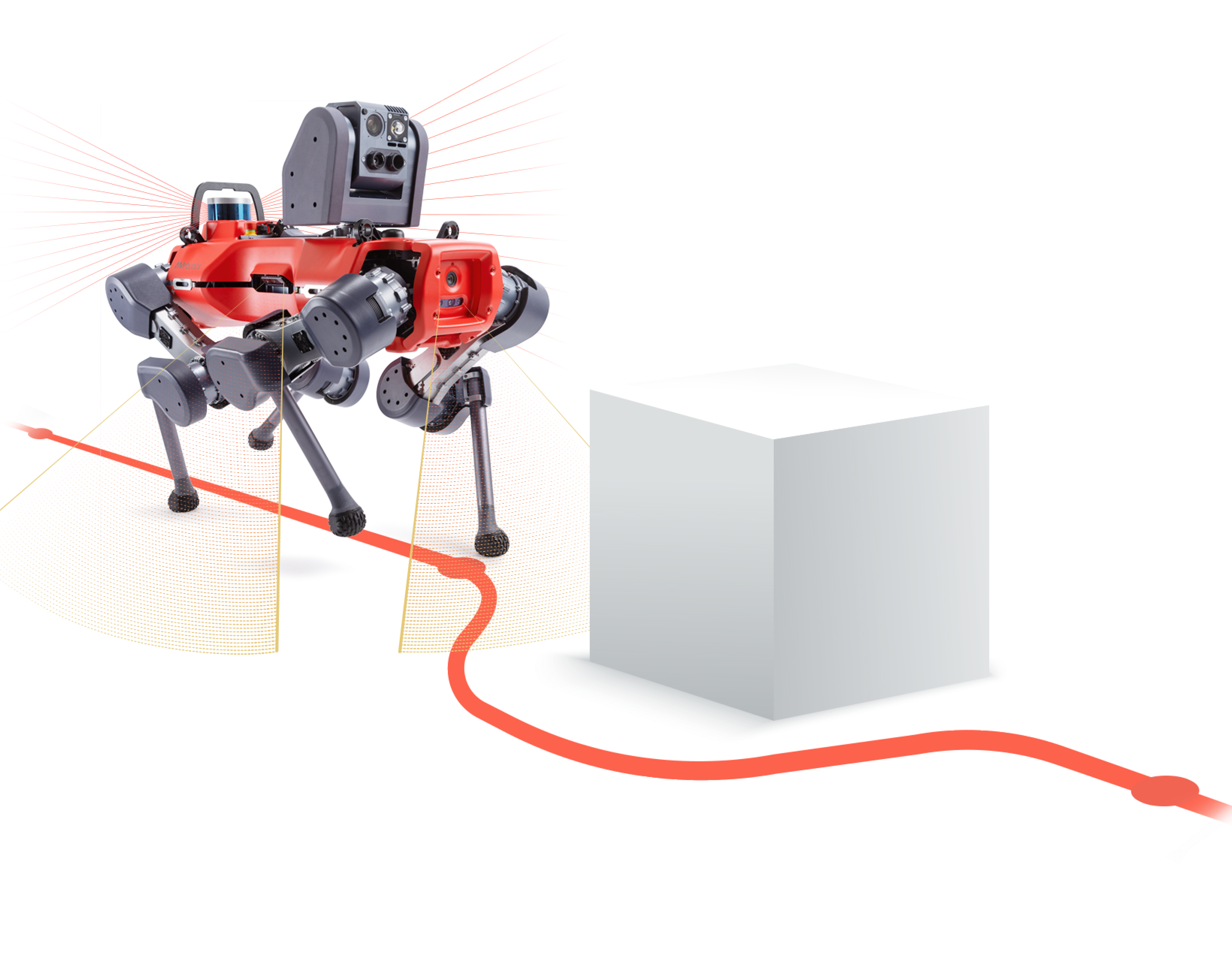

Obstacle avoidance

Built-in depth sensors perceive obstacles around the robot for smooth navigation.

Large-scale localization

ANYmal localizes at centimeter-accuracy in both confined spaces and large open environments.

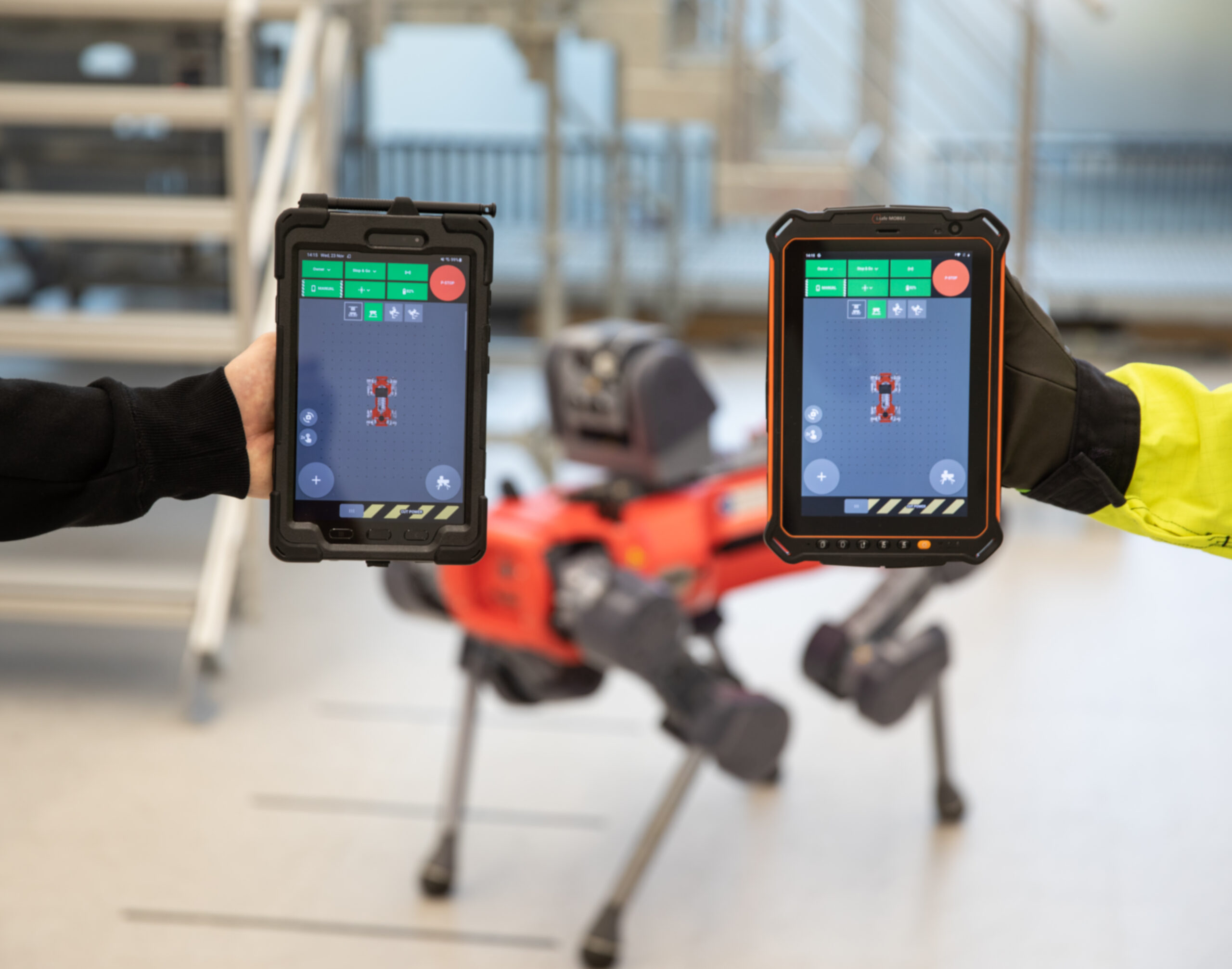

Tele-operation

Whenever needed, take over control and operate ANYmal manually with a view from its front and back cameras.
ANYbotics autonomy

Automatic docking

After finishing its mission, ANYmal connects itself to a docking station for recharging.

Range extension

Expand ANYmal’s inspection routes by deploying multiple docking stations at different locations.
ANYbotics docking station

90

min

battery run time

100

min

for 70% quick charge

3

h

for full charge

ANYmal carries built-in computation, eliminating the need for continuous network communication. If available, ANYmal connects through WiFi and optionally 4G/LTE.

Wifi icon

WIFI

ANYmal’s built-in 2.4 GHz or 5 GHz WiFi network connects to an available network or creates its own local network.
4G LTE icon

4G/LTE

Enable 4G/LTE telecommunication with an add-on module.

Inspection intelligence

ANYmal’s inspection payload provides visual, thermal, and acoustic insights for condition monitoring of equipment and infrastructure. The pan-tilt unit is used for scanning the environment around the robot and accurately positioning the built-in sensors for inspections of points of interest. AI-based inspection algorithms analyze the sensory data to interpret values, classify results, and detect anomalies.

Zoom camera

The visual camera provides a 20× optical zoom to take clear images and videos at far distances at 4K resolution.

Thermal camera

The thermal camera provides precise temperature readings in a range of -20–500°C without physical interaction.

Spotlight

The LED spotlight is used to support visual inspections in low-light conditions.

Ultrasonic microphone

Directional microphone for recording acoustic measurements in the audible and ultrasonic frequency range.

Pan-tilt unit

The high-range motion of the pan-tilt unit together with the robot base motion positions the sensors to check hard-to-reach places.

Edge computer

Built-in computation analyzes and protocols sensor readings, eliminating the need for continuous network communication.

  • A broad range of analog instruments and indicators can be digitized. Once trained on a type of instrument, the value or state is reliably identified.

    ANYbotics reading gauge

    Gauges

    Read off value of analog gauges

    Counters

    Read out analog counters

    Valves

    Check state of lever-operated valves


    Capture photo for manual analysis
  • Early signs of operating problems are caught by examining the general health of the equipment. During the inspection, ANYmal checks critical points for anomalies and reports severe problems immediately.

    ANYbotics acoustic inspection

    Thermography

    Measure temperatures at target locations

    Leakages

    Detect oil or water leakages

    Acoustic

    Detect unusual vibrations through frequency analysis

    Missing parts

    Approve presence of safety-critical machine parts
  • Unforeseen technical events can result in hazardous situations. Equipped with sensitive sensors, ANYmal detects dangerous conditions in the environment and triggers a warning when required.

    ANYbotics detecting events

    Hotspots

    Detect overheating in the environment

    Gases

    Determine dangerous gas presence and concentration (optional)

    Alarms

    Detect alarms to clear emergency passages
  • Industrial environments require continuous bookkeeping of structural changes. ANYmal supports operations by scanning and documenting 3d environment data as a digital twin.

    ANYbotics 3D environment scanning

Installation

ANYmal navigates all walkable areas without the need for environmental adaptations.

Show & go

Setup inspection missions by guiding the robot through the environment.
ANYmal inspection autonomous robot show and go

Import CAD / BIM

Work digitally with existing 3d plant models and transfer the missions to the physical plant.
ANYmal legged robot cad and bim

Joystick

During mission setup, a safety-certified remote control provides intuitive manual control. The joystick is ruggedized, waterproof, and can be used with work gloves.

Intuitive control

Ruggedized & waterproof

Direct link

Certified remote e-stop

ANYbotics joystick

Integration

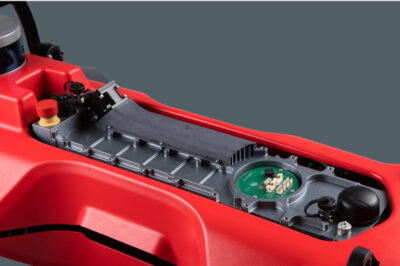

ANYbotics modular

Modular Payload

ANYmal is expandable to tackle a wide range of applications with up to 15 kg in payload, built-in communication, power interfaces, programable onboard computers.

ANYbotics ROS

ROS API

Program custom software to extend ANYmal’s capabilities and interface through the ROS (Robot Operating System) APIs and open-source ecosystem.

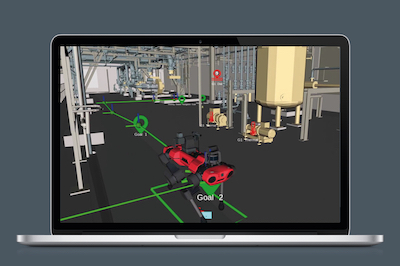

ANYmal legged robot simulation

Simulation

Develop and test your custom software with the ANYmal simulator, providing realistic physics-based simulations and access to all sensor data and APIs.

ANYbotics help icon

Need help?

Our team of robotic experts offers custom integration work.

Specifications

Inspection

20× optical zoom, thermal, microphone, spotlight

Payload

up to 15 kg

Obstacle sensing

6× depth cameras

Environment mapping

360° LIDAR

Tele-operation cameras

2× wide-angle color cameras

Battery

90 min runtime (swappable)

Operating size (L×W×H)

80 × 60 × 70 CM

Software

Ubuntu, ROS

Connectivity

WiFi & 4G/LTE (optional)

Accessories

Charger, docking station, remote control, transportation box
